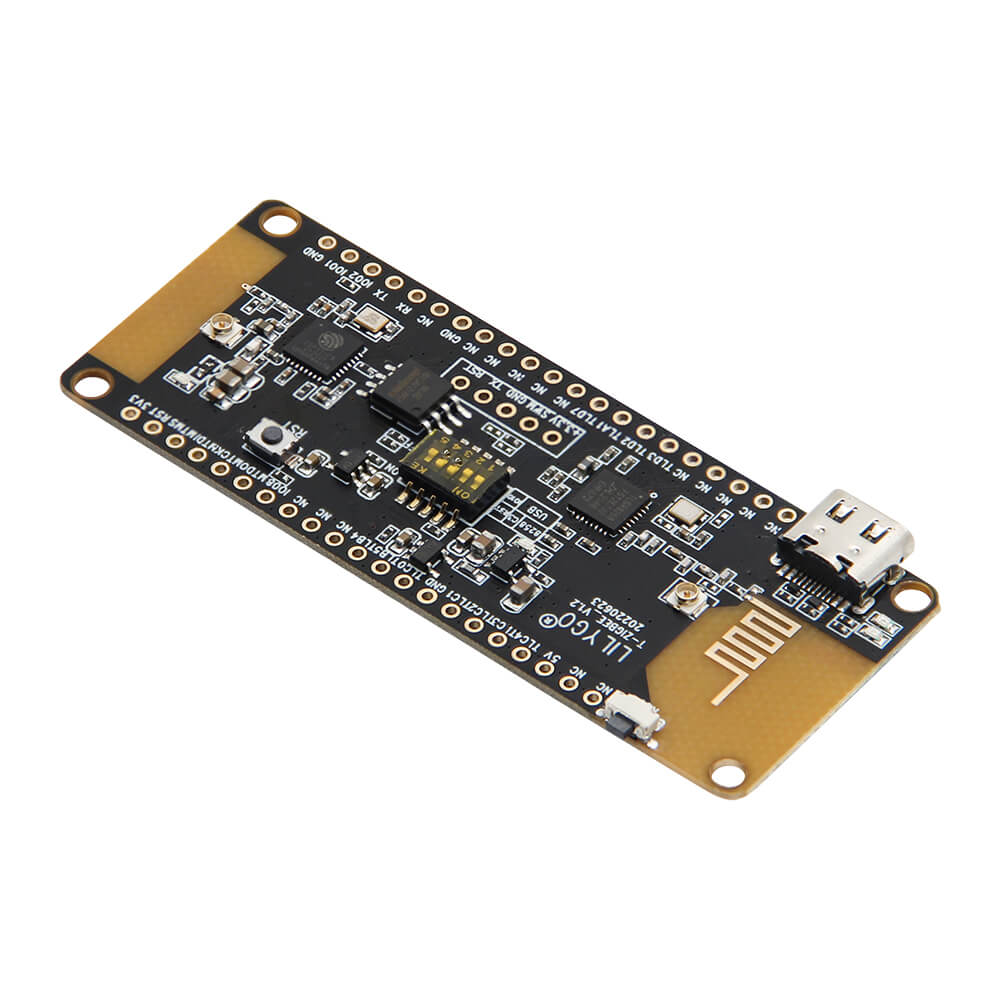

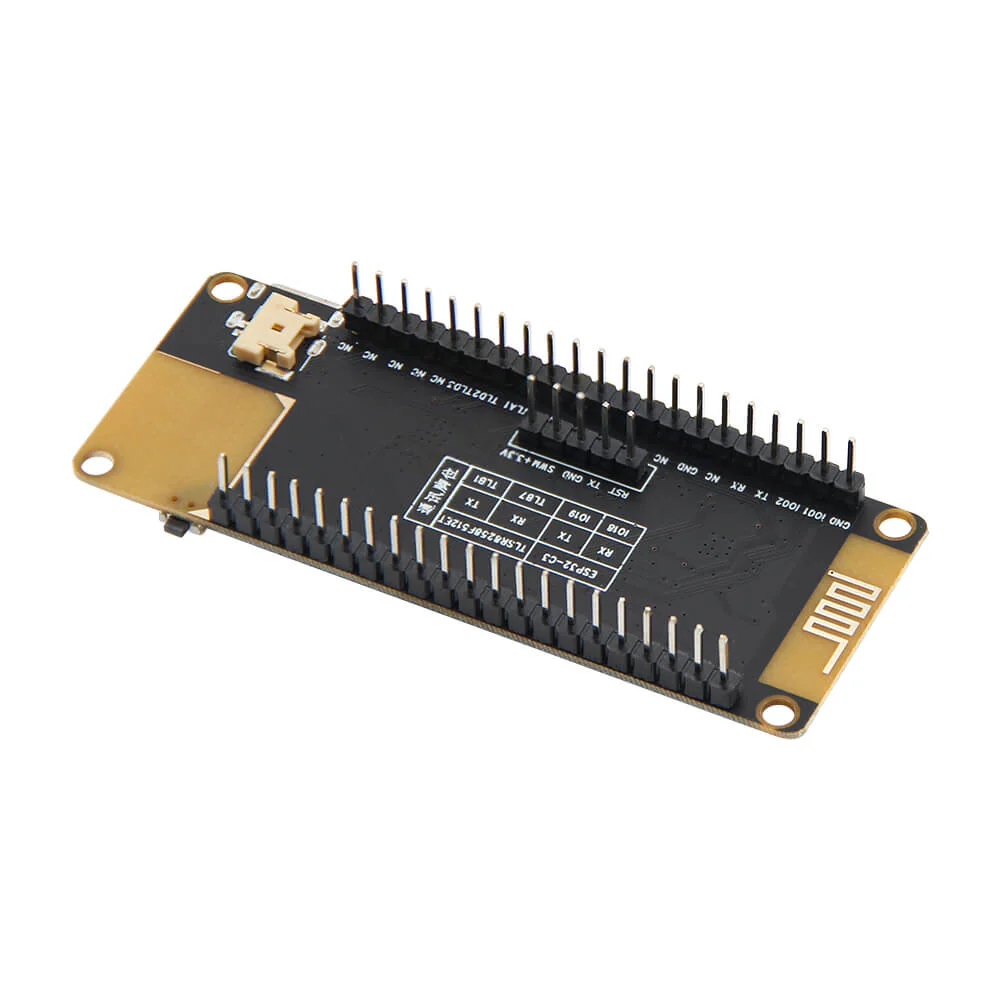

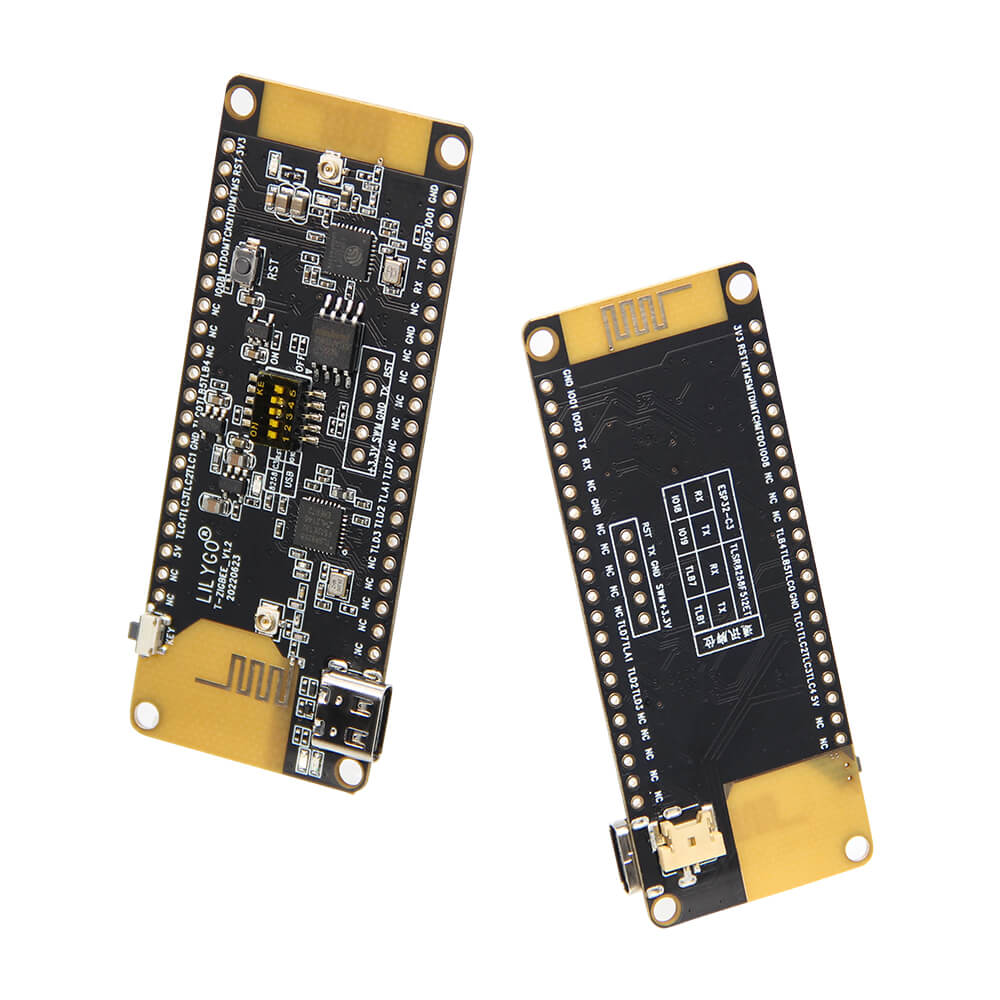

T-Zigbee
The T-ZigbeePA version adds a PA chip to the T-Zigbee version and replaces the antenna with stronger signal.
T-Zigbee is LILYGO®'s second motherboard with dual MCUs. (Notice: Two chips can work at the same time.)
Equipped with TLSR8258 Ultra-Low Power chip (Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN, HomeKit, ANT 2.4GHz Proprietary Standard) and ESP32-C3 chip (Support WIFI and Bluetooth).
Kind Tips
Specifications
| MCU 1 | TLSR8258 Ultra-low-power MCU supporting ZigBee and BLE5 |
| Wireless | Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN、HomeKit、 ANT 2.4GHz proprietary standard With PGA, AMIC, DMIC, 6-channel PWM function |
| Programmable LED | Red LED: PD04 |
| Green LED | PA00 |
| MCU 2 | ESP32-C3 Equipped with RISC-V processor SoC Support 2.4 GHz Wi-Fi and Bluetooth 5 (LE) Main frequency 160 MHz, built-in 400 KB SRAM, 384 KB ROM |
| Programmable buttons | IO02 |
| LED | IO03 |
Technology Support [Github]
If you need technical support please check the link to find more details.
T-Zigbee

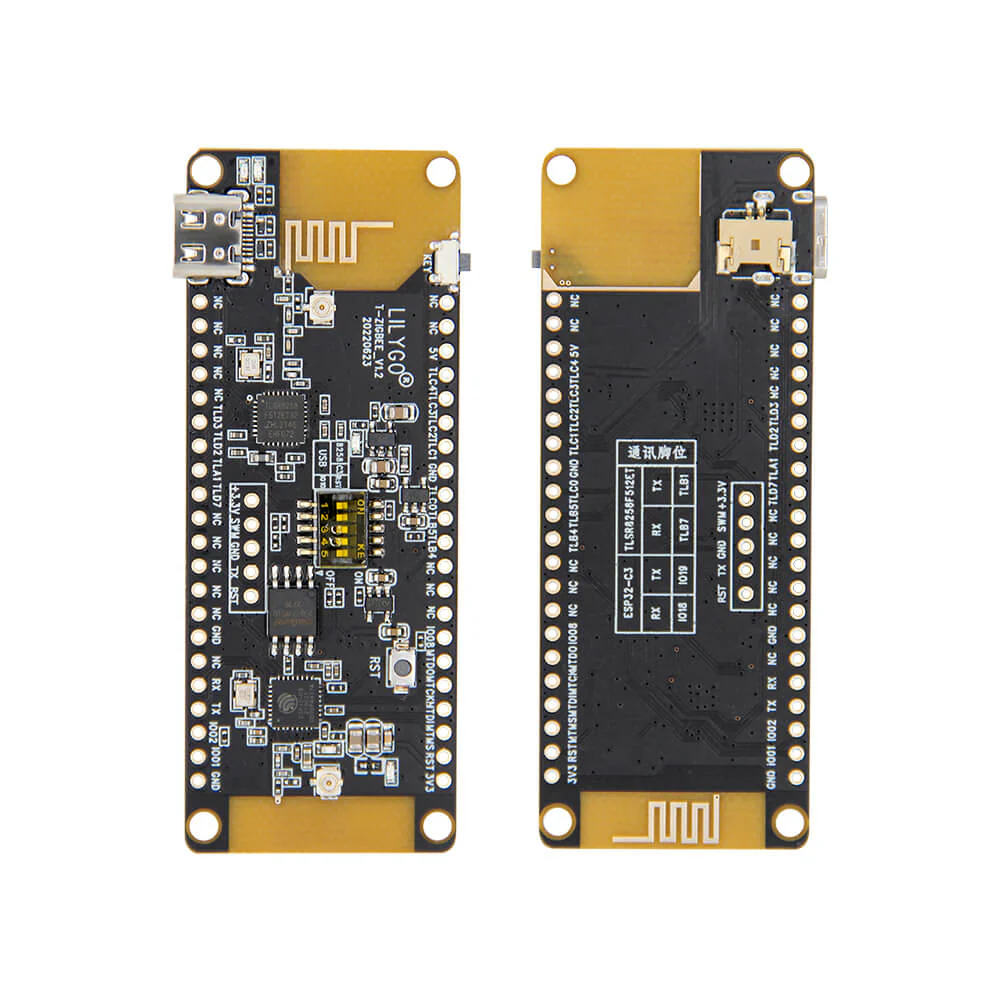

1. Appearance Details
2. Size
3. Pin Diagram
